Publication-Quality Plots

This guide accompanies Genomics Exchange Session 4 (March 10, 2026). Building on the tidyverse data wrangling skills from Session 3, we now turn that clean data into publication-ready figures using ggplot2.

We will create five common genomics figure types — volcano plots, MA plots, heatmaps, enrichment bar charts, and multi-condition bar plots — using the same maize drought RNA-seq dataset from Session 3. Each section shows the default output first, then walks through the changes needed to make it ready for a journal.

  • Prerequisites

    • Completed Session 3 (or comfortable with tidyverse basics)
    • Access to RStudio on Negishi via Open OnDemand
    • R packages: tidyverse, ggrepel, pheatmap, viridis, RColorBrewer, scales

  • What you will learn

    • Build five publication-quality figure types in ggplot2
    • Apply colorblind-safe palettes (viridis, RColorBrewer)
    • Export figures at journal-required DPI and dimensions
    • Transform an ugly default plot into a polished figure
    • Set a reusable global theme for consistent styling

Setup

  1. Launch RStudio on RCAC

    Go to gateway.negishi.rcac.purdue.edu, select Interactive Apps > RStudio Server, choose your allocation, and request 1 core, 4 GB memory, and 2 hours. Once the session starts, click Connect to RStudio.

    Warning

    Always run RStudio through Open OnDemand on a compute node. Do not run R sessions directly on login nodes — they are shared resources and intensive computation will be terminated.

  2. Download the data files

    In the RStudio Terminal tab (not the R console), run:

    1
2
3
4
5
6
7
8
    mkdir -p $RCAC_SCRATCH/genomics_exchange/session4
cd $RCAC_SCRATCH/genomics_exchange/session4
wget https://rcac-bioinformatics.github.io/assets/session3/deseq2_results.tsv
wget https://rcac-bioinformatics.github.io/assets/session3/sample_manifest.tsv
wget https://rcac-bioinformatics.github.io/assets/session3/counts_matrix.tsv
wget https://rcac-bioinformatics.github.io/assets/session3/gene_annotations.tsv
wget https://rcac-bioinformatics.github.io/assets/session4/fake_enrichment.tsv
wget https://rcac-bioinformatics.github.io/assets/session4/session4_demo.R

    Tip

    $RCAC_SCRATCH points to the correct scratch directory in all clusters. On Gautschi it is set to /scratch/gautschi/${USER} and on Bell /scratch/bell/${USER} and so on.

  3. Set your working directory in R

    Switch to the R console and run:

    1
    setwd(paste0("/scratch/negishi/", Sys.getenv("USER"), "/genomics_exchange/session4"))

  4. Set the cairo graphics device

    On headless HPC sessions (no X11 display), R's default PNG device may fail. Set the cairo backend before loading any plotting packages:

    1
    options(bitmapType = "cairo")

    Note

    This is only needed on cluster compute nodes. If you are running RStudio through Open OnDemand, it is usually handled automatically, but setting it explicitly does no harm and prevents cryptic errors.

  5. Install and load packages

    Install these packages if you have not used them before (run once):

    1
2
    install.packages(c("tidyverse", "ggrepel", "pheatmap",
                    "viridis", "RColorBrewer", "scales"))

    Then load them:

    1
2
3
4
5
6
    library(tidyverse)
library(ggrepel)
library(pheatmap)
library(viridis)
library(RColorBrewer)
library(scales)

  6. Set a global theme

    Every ggplot starts with a default theme. Instead of adding theme customization to every plot, set it once:

    1
    theme_set(theme_minimal(base_size = 14))

    base_size = 14 sets a readable default font size. All text elements (axis labels, titles, legend) scale relative to this value.

Load and prepare data

We reuse the four Session 3 files and add one new enrichment results file.

1
2
3
4
5
deseq      <- read_tsv("deseq2_results.tsv")
samples    <- read_tsv("sample_manifest.tsv")
counts     <- read_tsv("counts_matrix.tsv")
genes      <- read_tsv("gene_annotations.tsv")
enrichment <- read_tsv("fake_enrichment.tsv")

Prepare the DESeq2 results the same way we did in Session 3 — classify genes by direction and compute the transformed p-value:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
deseq <- deseq %>%
  mutate(
    direction = case_when(
      padj < 0.05 & log2FoldChange > 1  ~ "Up",
      padj < 0.05 & log2FoldChange < -1 ~ "Down",
      TRUE                               ~ "NS"
    ),
    neg_log10_padj = -log10(padj)
  ) %>%
  left_join(genes, by = "gene_id")

Define a color palette that we will reuse across plots. These colors are distinguishable under the three common forms of color vision deficiency:

1
direction_colors <- c("Down" = "#2166AC", "NS" = "grey70", "Up" = "#B2182B")

Volcano plot

The volcano plot is the signature figure of differential expression analysis. The x-axis shows biological effect size (log2 fold change) and the y-axis shows statistical significance (-log10 adjusted p-value). Genes in the upper corners are both statistically significant and biologically meaningful.

Quick version

1
2
ggplot(deseq, aes(x = log2FoldChange, y = neg_log10_padj)) +
  geom_point()

Volcano plot — default output

This produces a functional scatter plot, but it is not ready for publication. There is no color coding, no gene labels, no threshold lines, and the axis labels are raw variable names.

Publication version

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
top_genes <- deseq %>%
  filter(padj < 0.05) %>%
  arrange(padj) %>%
  slice_head(n = 8)

volcano <- ggplot(deseq, aes(x = log2FoldChange, y = neg_log10_padj,
                              color = direction)) +
  geom_point(size = 2, alpha = 0.8) +
  geom_hline(yintercept = -log10(0.05), linetype = "dashed",
             color = "grey40", linewidth = 0.5) +
  geom_vline(xintercept = c(-1, 1), linetype = "dashed",
             color = "grey40", linewidth = 0.5) +
  geom_text_repel(
    data = top_genes,
    aes(label = gene_name),
    size = 3.5,
    max.overlaps = 15,
    box.padding = 0.5,
    segment.color = "grey50",
    color = "black"
  ) +
  scale_color_manual(values = direction_colors, name = "Direction") +
  labs(
    x = expression(log[2]~"Fold Change"),
    y = expression(-log[10]~"(adjusted p-value)"),
    title = "Differential expression: drought vs. control",
    subtitle = "Maize leaf tissue RNA-seq"
  ) +
  theme(
    panel.grid.minor = element_blank(),
    legend.position = "top"
  )

volcano

Volcano plot — publication version

What changed and why:

  • geom_text_repel() from the ggrepel package positions gene labels so they do not overlap. The segment.color argument draws a line connecting each label to its point.
  • Dashed threshold lines at padj = 0.05 and |log2FC| = 1 show your significance cutoffs directly on the figure. Readers do not have to guess.
  • expression() renders mathematical notation: log₂ with a proper subscript.
  • scale_color_manual() maps direction to our colorblind-safe palette.

Export

1
2
3
4
ggsave("volcano_plot.png", volcano,
       width = 7, height = 6, dpi = 300, units = "in")
ggsave("volcano_plot.pdf", volcano,
       width = 7, height = 6, units = "in")

Tip

Always save both PNG (for slides and web) and PDF (for journal submission). PDFs produce vector graphics that scale to any size without pixelation.

MA plot

The MA plot shows mean expression level (x-axis) vs. fold change (y-axis). It reveals whether fold change estimates depend on expression level — low-count genes tend to have noisier fold changes. This is a standard QC figure in RNA-seq analysis.

Quick version

1
2
ggplot(deseq, aes(x = baseMean, y = log2FoldChange)) +
  geom_point()

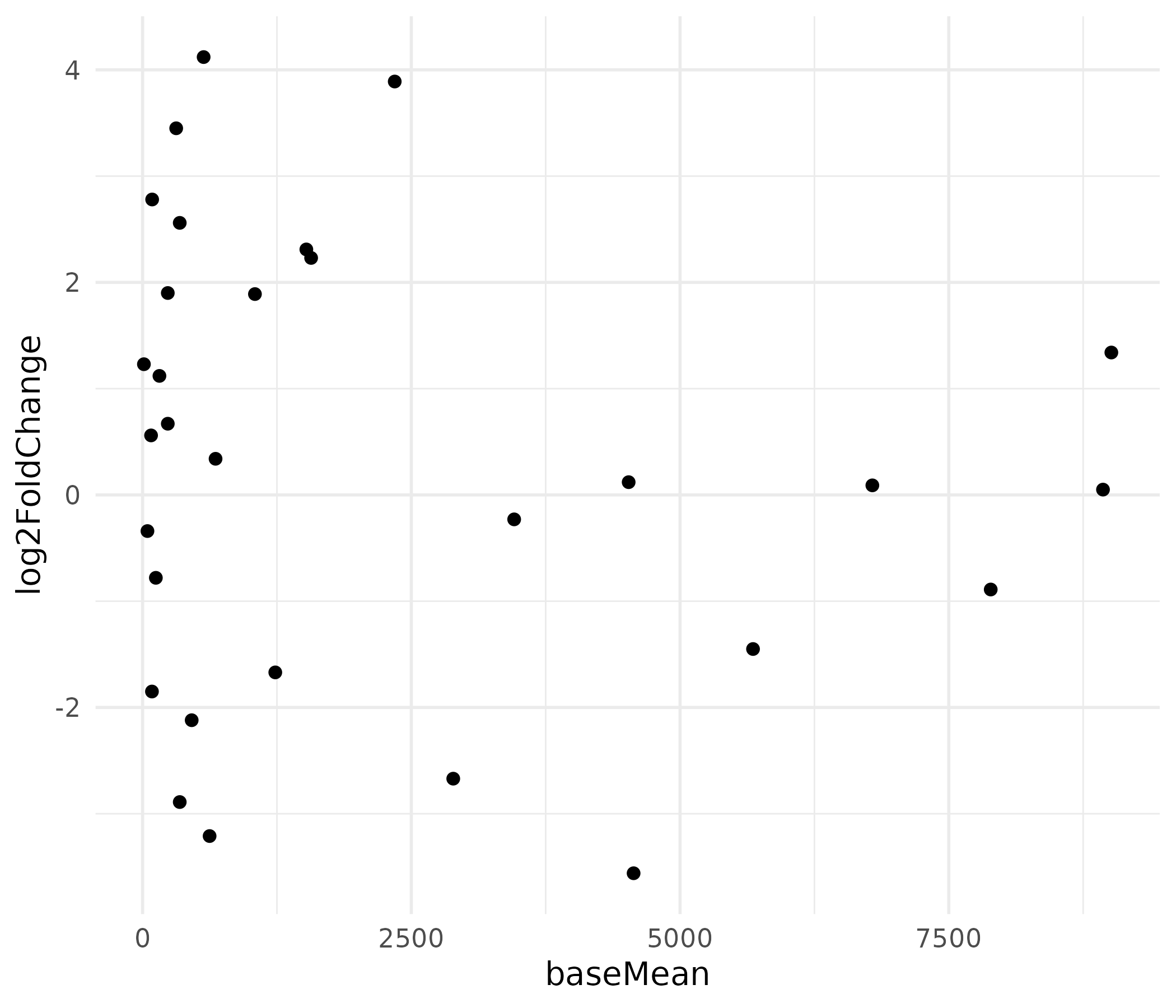

MA plot — default output

The x-axis is heavily right-skewed because a few highly expressed genes dominate the scale, compressing most points to the left.

Publication version

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
ma_plot <- ggplot(deseq, aes(x = baseMean, y = log2FoldChange,
                              color = direction)) +
  geom_point(size = 2, alpha = 0.8) +
  geom_hline(yintercept = 0, linetype = "solid",
             color = "grey30", linewidth = 0.5) +
  scale_x_log10(
    labels = label_comma(),
    breaks = c(10, 100, 1000, 10000)
  ) +
  scale_color_manual(values = direction_colors, name = "Direction") +
  geom_text_repel(
    data = deseq %>% filter(abs(log2FoldChange) > 3),
    aes(label = gene_name),
    size = 3.5,
    color = "black",
    max.overlaps = 10
  ) +
  labs(
    x = "Mean normalized counts (log scale)",
    y = expression(log[2]~"Fold Change"),
    title = "MA plot: expression level vs. fold change"
  ) +
  theme(
    panel.grid.minor = element_blank(),
    legend.position = "top"
  )

ma_plot

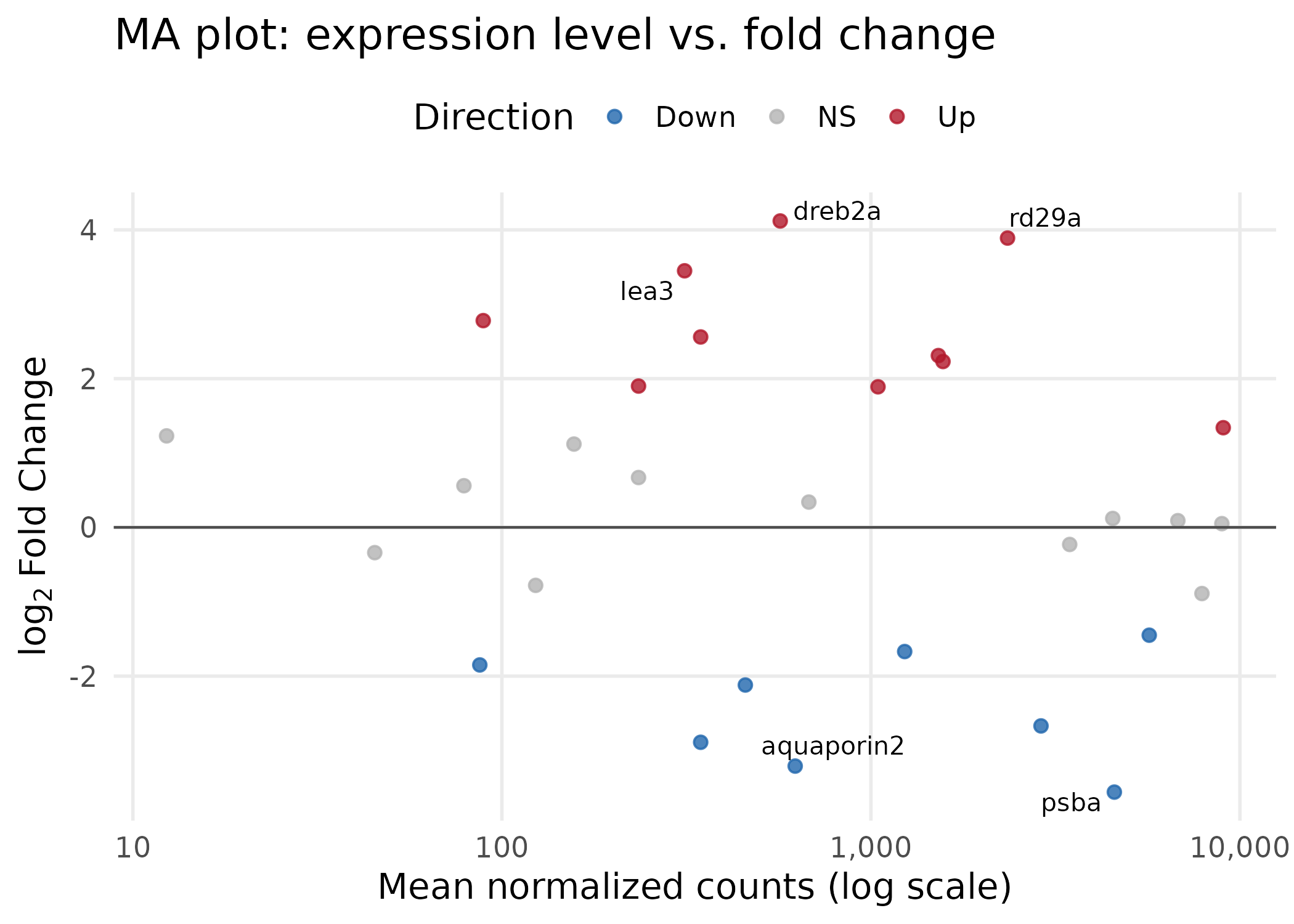

MA plot — publication version

Key choices:

  • scale_x_log10() spreads the heavily right-skewed baseMean distribution, making all genes visible. The label_comma() function from the scales package keeps axis labels human-readable (e.g., "1,000" instead of scientific notation).
  • The horizontal line at y = 0 provides a visual reference — genes above are upregulated, below are downregulated.
  • Only genes with |log2FC| > 3 are labeled to avoid clutter.

Export

1
2
3
4
ggsave("ma_plot.png", ma_plot,
       width = 7, height = 5, dpi = 300, units = "in")
ggsave("ma_plot.pdf", ma_plot,
       width = 7, height = 5, units = "in")

Heatmap

Heatmaps display expression patterns across genes (rows) and samples (columns) using color intensity. They are effective at showing groups of co-regulated genes and whether samples cluster by experimental condition. We use the pheatmap package, which handles clustering and annotation sidebars.

Prepare the data

1
2
3
4
5
6
7
8
9
sig_genes <- deseq %>%
  filter(padj < 0.05) %>%
  arrange(padj) %>%
  pull(gene_id)

count_matrix <- counts %>%
  filter(gene_id %in% sig_genes) %>%
  column_to_rownames("gene_id") %>%
  as.matrix()

Replace gene IDs with readable gene names:

1
2
3
4
5
6
gene_name_lookup <- deseq %>%
  filter(gene_id %in% sig_genes) %>%
  select(gene_id, gene_name) %>%
  deframe()

rownames(count_matrix) <- gene_name_lookup[rownames(count_matrix)]

Scale the rows (z-score normalization) so the color represents relative change within each gene, not absolute expression level. Without scaling, highly expressed housekeeping genes would dominate the color map:

1
count_scaled <- t(scale(t(count_matrix)))

Quick version

1
pheatmap(count_scaled)

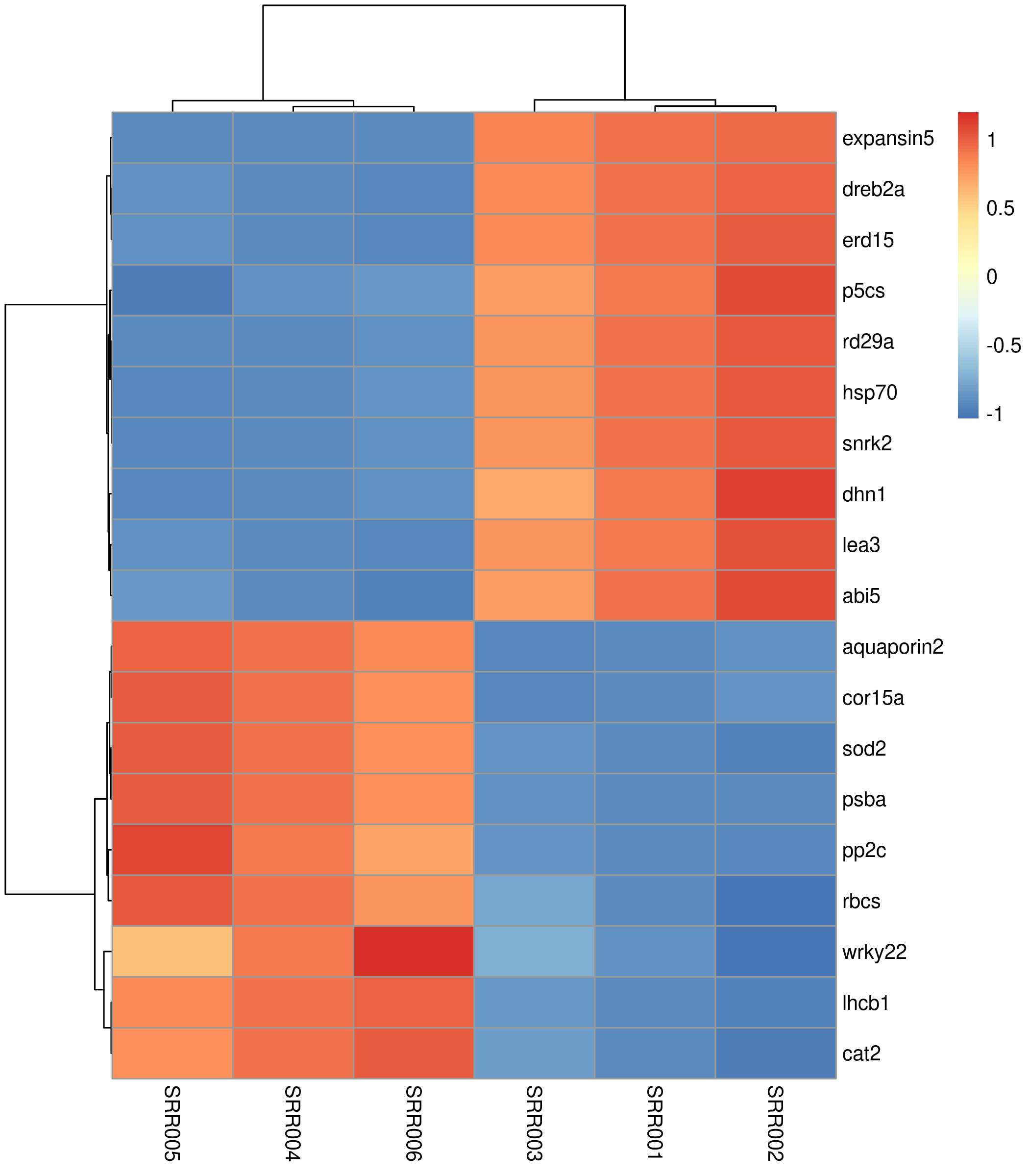

Heatmap — default output

The default heatmap uses a blue-to-red palette, clusters both rows and columns, and works. But it lacks sample annotations and uses a suboptimal color scheme.

Publication version

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
sample_annot <- samples %>%
  select(sample_id, condition) %>%
  column_to_rownames("sample_id")

annot_colors <- list(
  condition = c("drought" = "#D53E4F", "control" = "#3288BD")
)

heatmap_colors <- colorRampPalette(
  rev(brewer.pal(9, "RdBu"))
)(100)

pheatmap(
  count_scaled,
  color             = heatmap_colors,
  annotation_col    = sample_annot,
  annotation_colors = annot_colors,
  clustering_method  = "ward.D2",
  cluster_cols       = TRUE,
  cluster_rows       = TRUE,
  show_colnames      = TRUE,
  show_rownames      = TRUE,
  fontsize           = 11,
  fontsize_row       = 10,
  fontsize_col       = 10,
  border_color       = NA,
  main               = "Expression of DE genes (z-score scaled)",
  angle_col          = 45
)

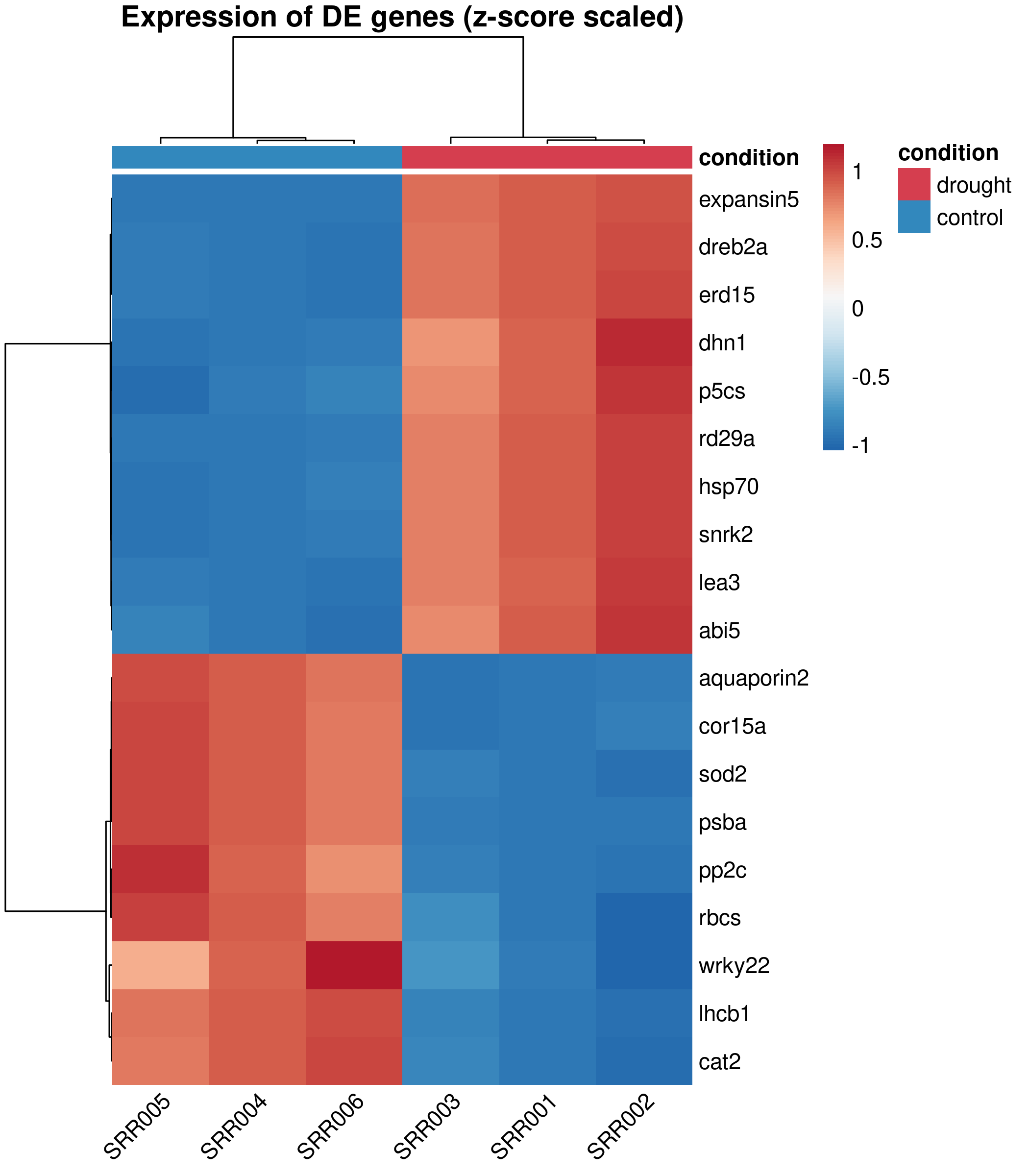

Heatmap — publication version

Design decisions:

  • RdBu palette (Red-Blue, diverging) is colorblind-safe and conventional for expression heatmaps. Blue = low, white = unchanged, red = high.
  • annotation_col adds a colored sidebar showing which condition each sample belongs to, so readers immediately see the grouping.
  • ward.D2 clustering produces compact, well-separated clusters. It is the default recommendation for expression data.
  • border_color = NA removes the grid between cells, which adds visual noise in dense heatmaps.

Export

pheatmap does not return a ggplot object, so we use png() / pdf() with dev.off() instead of ggsave():

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
png("heatmap_de_genes.png", width = 7, height = 8,
    units = "in", res = 300, type = "cairo")
pheatmap(
  count_scaled,
  color             = heatmap_colors,
  annotation_col    = sample_annot,
  annotation_colors = annot_colors,
  clustering_method  = "ward.D2",
  border_color       = NA,
  fontsize           = 11,
  main               = "Expression of DE genes (z-score scaled)",
  angle_col          = 45
)
dev.off()

Warning

Do not forget dev.off() after png() or pdf(). If you skip it, the file will not be written and your RStudio plot pane may stop working until you run dev.off().

For PDF:

1
2
3
pdf("heatmap_de_genes.pdf", width = 7, height = 8)
# ... same pheatmap() call ...
dev.off()

Enrichment bar plot

GO or functional enrichment analysis summarizes the biological themes among your differentially expressed genes. Here we use a small simulated enrichment result to demonstrate two common visualization styles: a dot plot and a bar chart.

The data

1
enrichment

Each row is a GO term with its name, gene count, fold enrichment, and adjusted p-value.

Quick version

1
2
ggplot(enrichment, aes(x = term_name, y = fold_enrichment)) +
  geom_col()

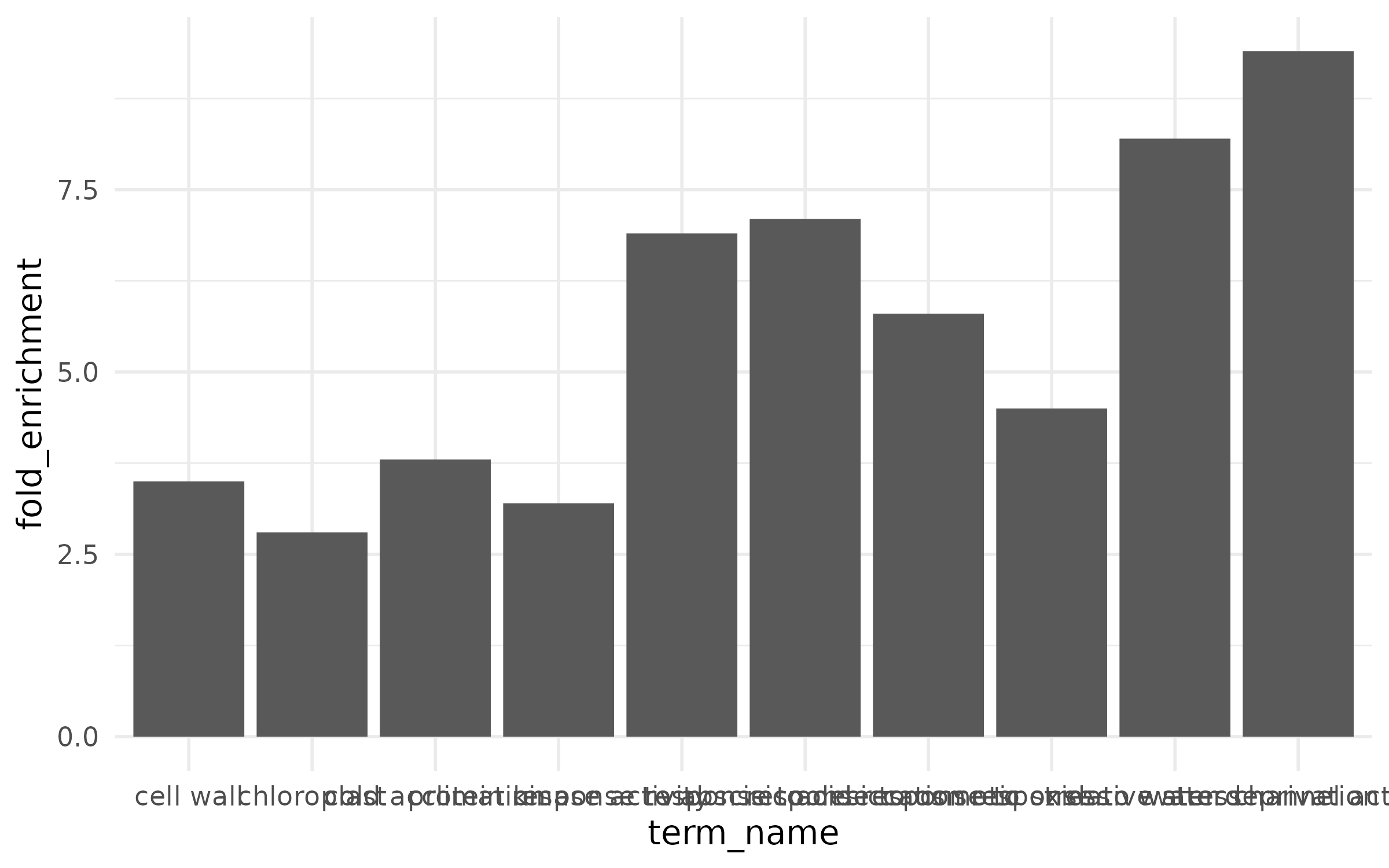

Enrichment bar chart — default output

The x-axis labels overlap and are unreadable, there is no color to convey additional information, and terms are in alphabetical order instead of ranked by effect.

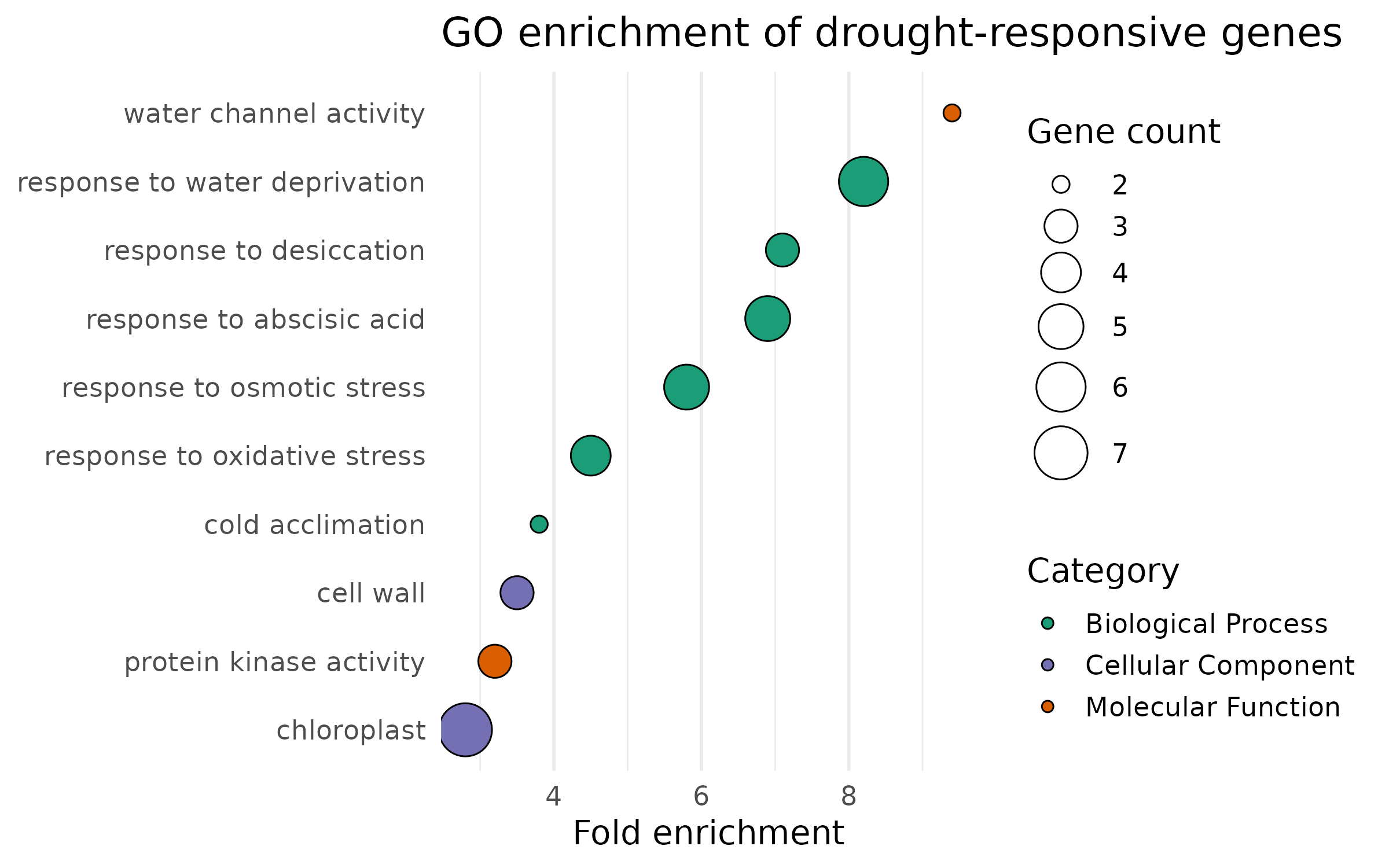

Publication version — dot plot

The dot plot encodes three variables: x-position (fold enrichment), color (category), and point size (gene count).

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
enrich_plot <- enrichment %>%
  mutate(term_name = fct_reorder(term_name, fold_enrichment)) %>%
  ggplot(aes(x = fold_enrichment, y = term_name,
             fill = category, size = gene_count)) +
  geom_point(shape = 21, color = "black", stroke = 0.5) +
  scale_fill_manual(
    values = c("BP" = "#1B9E77", "MF" = "#D95F02", "CC" = "#7570B3"),
    name = "Category",
    labels = c("BP" = "Biological Process",
               "MF" = "Molecular Function",
               "CC" = "Cellular Component")
  ) +
  scale_size_continuous(range = c(3, 10), name = "Gene count") +
  labs(
    x = "Fold enrichment",
    y = NULL,
    title = "GO enrichment of drought-responsive genes"
  ) +
  theme(
    panel.grid.major.y = element_blank(),
    legend.position = "right"
  )

enrich_plot

Enrichment dot plot — publication version

Publication version — bar chart

The bar chart uses color to encode significance instead of category:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
enrich_bar <- enrichment %>%
  mutate(
    term_name = fct_reorder(term_name, fold_enrichment),
    neg_log10_padj = -log10(padj)
  ) %>%
  ggplot(aes(x = fold_enrichment, y = term_name, fill = neg_log10_padj)) +
  geom_col(width = 0.7) +
  geom_text(aes(label = paste0("n=", gene_count)),
            hjust = -0.2, size = 3.5) +
  scale_fill_viridis_c(
    option = "plasma",
    name = expression(-log[10]~"(padj)"),
    direction = -1
  ) +
  scale_x_continuous(expand = expansion(mult = c(0, 0.15))) +
  labs(
    x = "Fold enrichment",
    y = NULL,
    title = "GO enrichment of drought-responsive genes"
  ) +
  theme(
    panel.grid.major.y = element_blank(),
    panel.grid.minor   = element_blank()
  )

enrich_bar

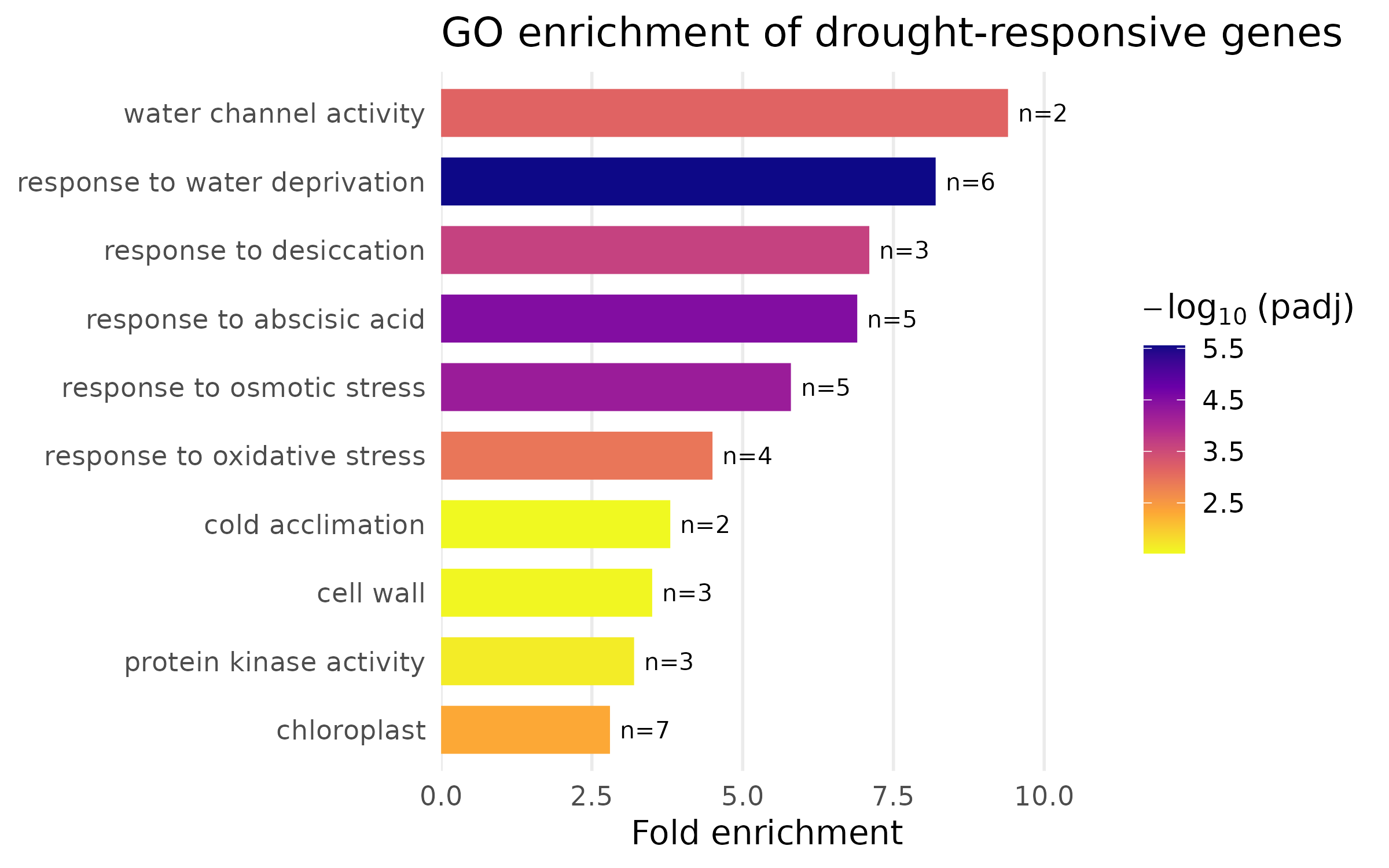

Enrichment bar plot — publication version

Design notes:

  • fct_reorder() sorts terms by fold enrichment so the most enriched terms appear at the top. Never leave categorical axes in alphabetical order — rank them by the variable of interest.
  • Horizontal layout (terms on the y-axis) avoids the overlapping-label problem entirely.
  • viridis "plasma" palette is perceptually uniform and colorblind-safe. The continuous color scale maps significance, giving the reader two dimensions of information.

Export

1
2
3
4
ggsave("enrichment_dotplot.png", enrich_plot,
       width = 8, height = 5, dpi = 300, units = "in")
ggsave("enrichment_barplot.png", enrich_bar,
       width = 8, height = 5, dpi = 300, units = "in")

Before and after: ugly to publication-ready

This section demonstrates the iterative improvement process. We start with a default ggplot bar chart and fix one problem at a time.

Prepare data

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
top6 <- deseq %>%
  filter(direction != "NS") %>%
  arrange(padj) %>%
  slice_head(n = 6)

counts_long <- counts %>%
  pivot_longer(cols = starts_with("SRR"),
               names_to = "sample_id", values_to = "count") %>%
  left_join(samples, by = "sample_id") %>%
  left_join(genes, by = "gene_id")

plot_data <- counts_long %>%
  filter(gene_id %in% top6$gene_id) %>%
  group_by(gene_name, condition) %>%
  summarize(
    mean_count = mean(count),
    se_count   = sd(count) / sqrt(n()),
    .groups    = "drop"
  )

Step 1: The ugly default

1
2
3
4
5
p_ugly <- ggplot(plot_data, aes(x = gene_name, y = mean_count,
                                 fill = condition)) +
  geom_col(position = "dodge")

p_ugly

Default bar plot

What is wrong:

  1. Default grey background is distracting
  2. Axis labels are raw variable names
  3. Default fill colors are not colorblind-safe
  4. No error bars — readers cannot assess variability
  5. Font is too small for a figure panel
  6. No title explaining what the figure shows
  7. Too many gridlines add visual noise

Step 2: Fix the theme

1
2
p_step2 <- p_ugly +
  theme_minimal(base_size = 14)

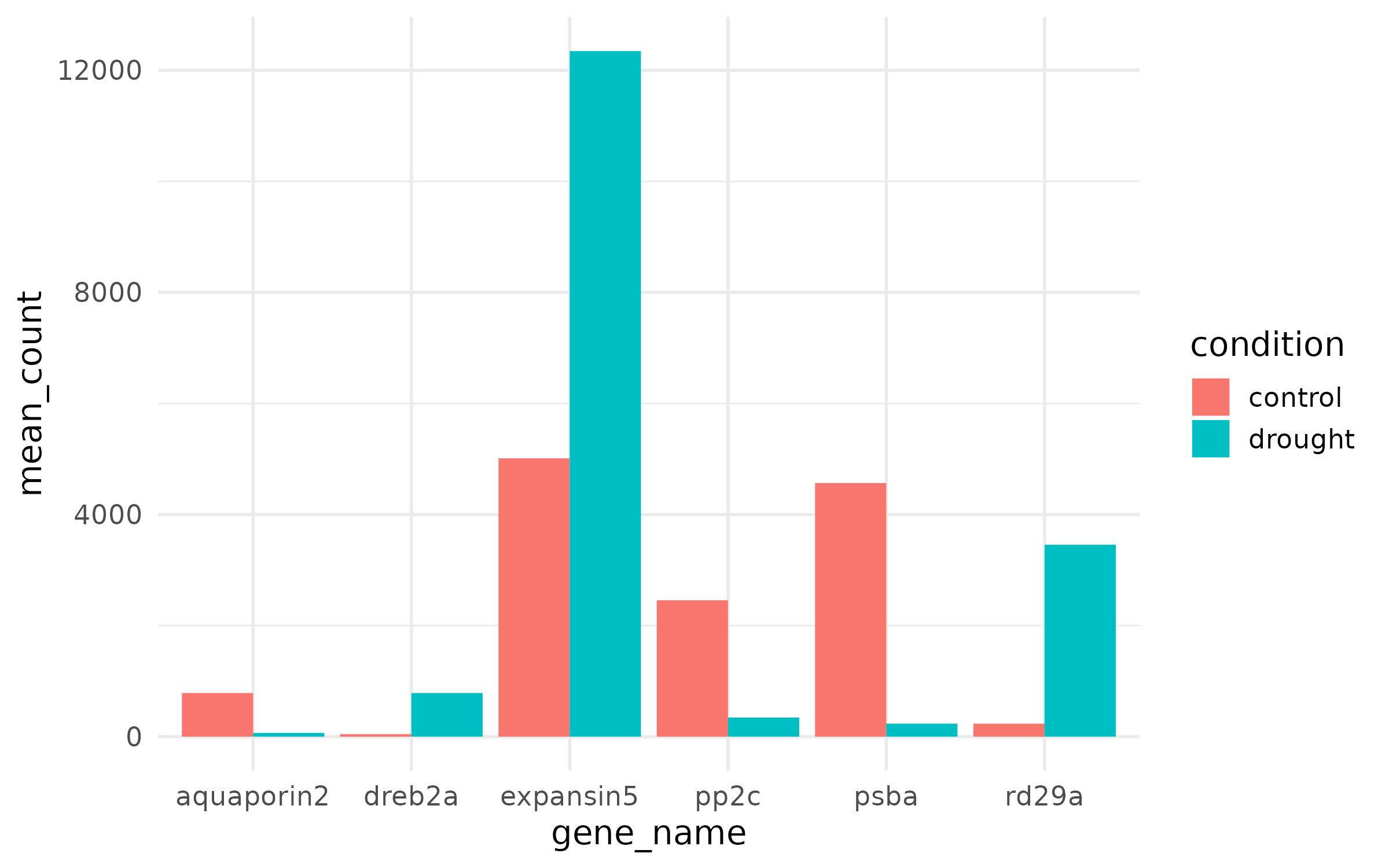

Bar plot with minimal theme applied

Step 3: Fix colors

1
2
3
4
p_step3 <- p_step2 +
  scale_fill_manual(values = c("control" = "#3288BD",
                                "drought" = "#D53E4F"),
                    name = "Condition")

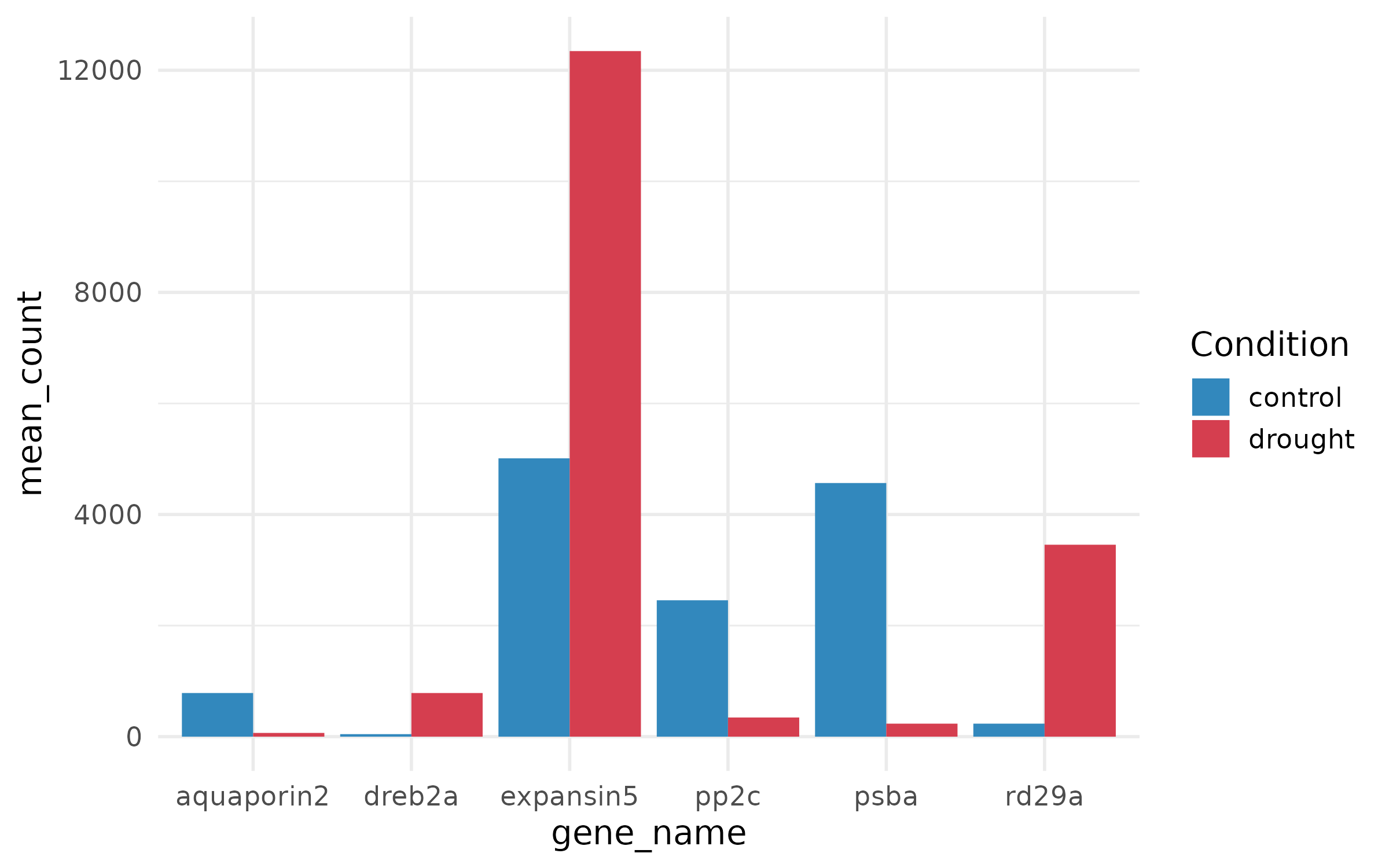

Bar plot with colorblind-safe colors

Step 4: Add error bars and proper labels

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
p_step4 <- ggplot(plot_data, aes(x = gene_name, y = mean_count,
                                  fill = condition)) +
  geom_col(position = position_dodge(width = 0.8), width = 0.7) +
  geom_errorbar(
    aes(ymin = mean_count - se_count, ymax = mean_count + se_count),
    position = position_dodge(width = 0.8),
    width = 0.25,
    linewidth = 0.5
  ) +
  scale_fill_manual(values = c("control" = "#3288BD",
                                "drought" = "#D53E4F"),
                    name = "Condition") +
  labs(
    x = NULL,
    y = "Mean normalized counts",
    title = "Expression of top DE genes",
    subtitle = "Drought vs. control (mean +/- SE, n = 3)"
  ) +
  theme_minimal(base_size = 14)

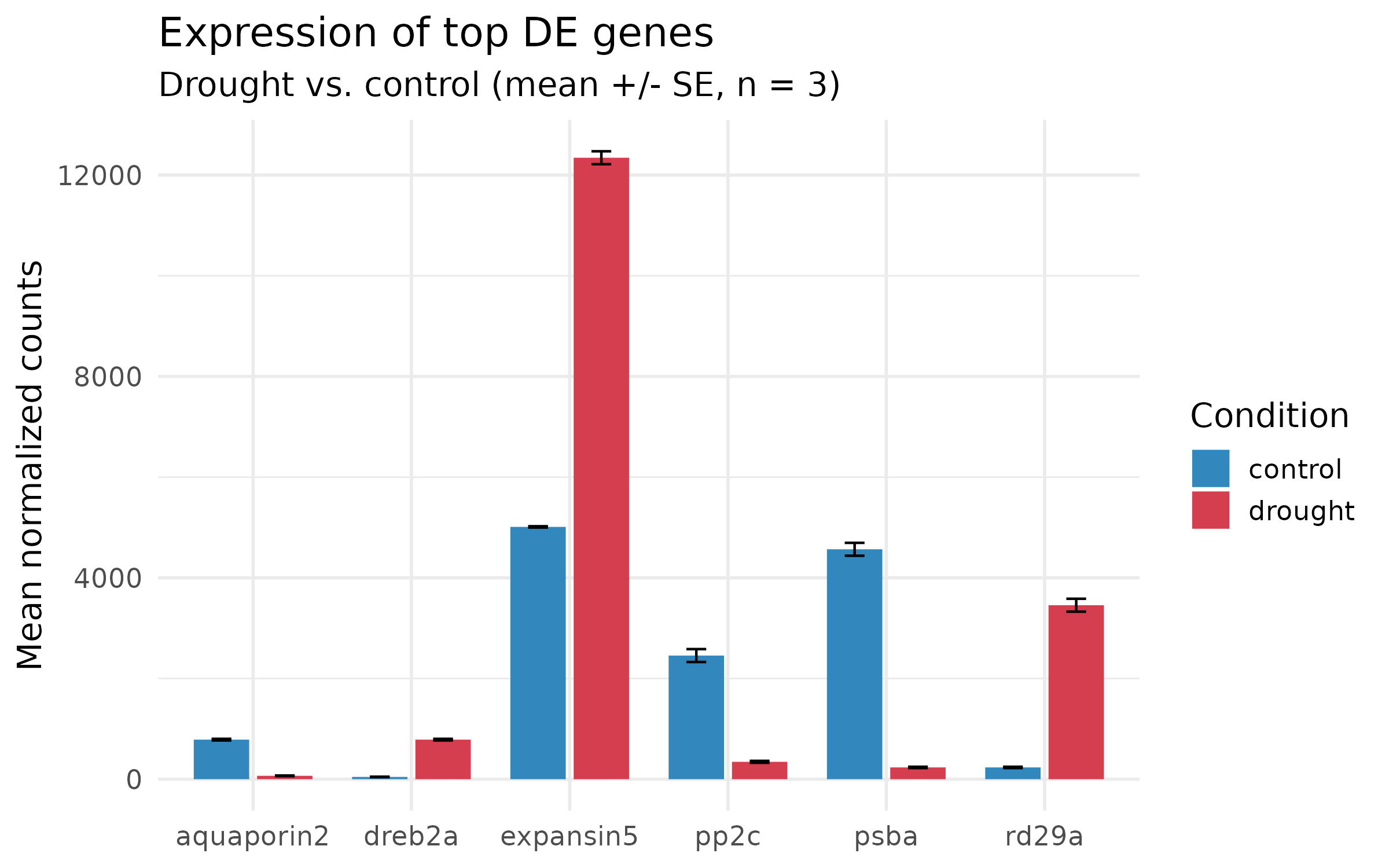

Bar plot with error bars and proper labels

Step 5: Final polish — remove chartjunk

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
p_final <- p_step4 +
  theme(
    panel.grid.minor   = element_blank(),
    panel.grid.major.x = element_blank(),
    legend.position    = c(0.85, 0.85),
    legend.background  = element_rect(fill = "white", color = NA),
    axis.text.x        = element_text(face = "italic", size = 12)
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.1)))

p_final

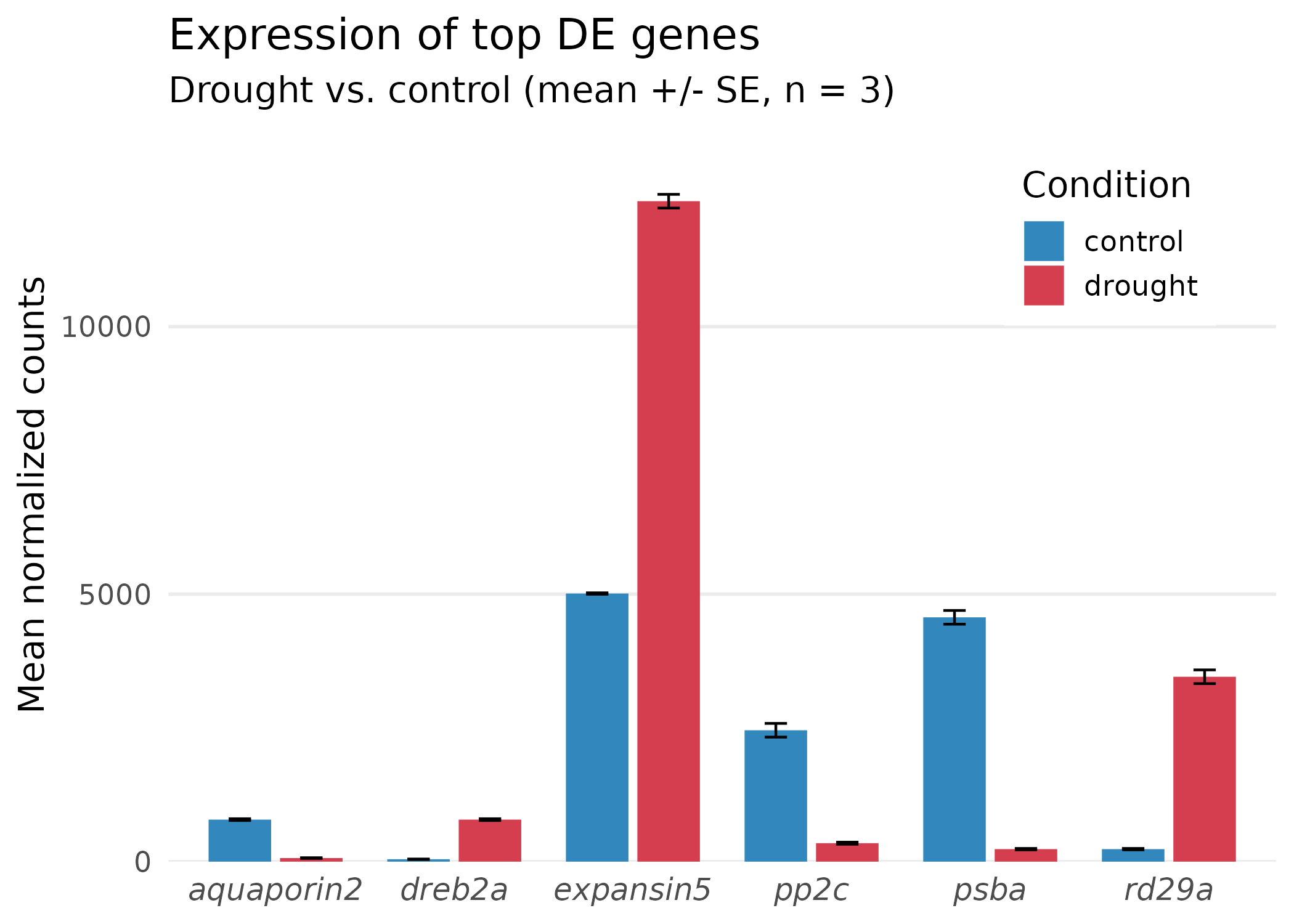

Final publication-ready bar plot

What changed in the final step:

  • Removed vertical gridlines — they are not useful when the x-axis is categorical.
  • Removed minor gridlines — reduces visual noise.
  • Moved the legend inside the plot — saves space in tight figure panels.
  • Italicized gene names — gene symbols are italicized by convention in biological publications.
  • y-axis starts at zero — bar charts must start at zero to avoid misrepresenting magnitudes.

Export

1
2
3
4
5
6
ggsave("barplot_ugly.png", p_ugly,
       width = 7, height = 5, dpi = 300, units = "in")
ggsave("barplot_final.png", p_final,
       width = 7, height = 5, dpi = 300, units = "in")
ggsave("barplot_final.pdf", p_final,
       width = 7, height = 5, units = "in")

Principles of publication figures

Color palettes for accessibility

Approximately 8% of men and 0.5% of women have some form of color vision deficiency. Every figure you publish should be readable by this audience.

Recommended palettes:

Palette Package Best for How to use
viridis viridis Continuous data (expression, p-values) scale_fill_viridis_c()
RdBu RColorBrewer Diverging data (fold changes, z-scores) scale_fill_distiller(palette = "RdBu")
Dark2 RColorBrewer Categorical data (2-8 groups) scale_color_brewer(palette = "Dark2")
Set2 RColorBrewer Categorical data (lighter variant) scale_fill_brewer(palette = "Set2")

To see all colorblind-safe palettes in RColorBrewer:

1
display.brewer.all(colorblindFriendly = TRUE)

Tip

When you only need 2–3 colors and want full control, define them manually with hex codes. The palette c("#2166AC", "#B2182B") (blue and red from the RdBu scale) works well for two-group comparisons and is safe for all common color vision deficiencies.

When to use which plot type

Question Plot type Key ggplot2 function
Which genes are significant and large-effect? Volcano plot geom_point() + geom_text_repel()
Does fold change depend on expression level? MA plot geom_point() + scale_x_log10()
How do expression patterns cluster? Heatmap pheatmap()
What biological themes are enriched? Enrichment dot/bar plot geom_point() or geom_col()
How does one gene differ between conditions? Box/bar plot geom_boxplot() or geom_col()

Journal figure requirements

Most journals specify figure dimensions and resolution. Common requirements:

Journal tier Format DPI Max width
Nature family PDF or TIFF 300 180 mm (7.1 in)
Cell family PDF or EPS 300 174 mm (6.85 in)
PLOS journals TIFF or EPS 300 174 mm (6.85 in)
General rule PDF + PNG 300 170 mm (~6.7 in)

Standard column widths:

1
2
3
# Single column:   ~3.15 in (80 mm)
# 1.5 column:      ~5.51 in (140 mm)
# Double column:    ~6.69 in (170 mm)

Always check your target journal's author guidelines before final export. Use ggsave() with explicit width, height, dpi, and units for every figure.

Font sizing rules of thumb

Element Minimum size ggplot2 parameter
Axis labels 8–10 pt theme(axis.title = element_text(size = ...))
Axis tick labels 7–9 pt theme(axis.text = element_text(size = ...))
Legend text 7–9 pt theme(legend.text = element_text(size = ...))
Title 10–12 pt theme(plot.title = element_text(size = ...))
Panel labels (facets) 8–10 pt theme(strip.text = element_text(size = ...))

Note

When setting base_size in your theme (e.g., theme_minimal(base_size = 14)), all other text sizes scale relative to it. A base_size of 12–14 works well for most single-panel figures. For multi-panel figures that will be shrunk to fit a column, start with base_size = 10–12.

Reusable theme function

If you produce many figures for one project or paper, define a custom theme once and apply it everywhere:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
theme_publication <- function(base_size = 14) {
  theme_minimal(base_size = base_size) %+replace%
    theme(
      panel.grid.minor    = element_blank(),
      panel.grid.major    = element_line(color = "grey92", linewidth = 0.4),
      axis.line           = element_line(color = "grey30", linewidth = 0.4),
      axis.ticks          = element_line(color = "grey30", linewidth = 0.3),
      strip.background    = element_rect(fill = "grey95", color = NA),
      strip.text          = element_text(face = "bold", size = base_size),
      plot.title          = element_text(face = "bold", hjust = 0,
                                         size = base_size + 2),
      plot.subtitle       = element_text(color = "grey40", hjust = 0),
      plot.title.position = "plot"
    )
}

theme_set(theme_publication())

ggplot2 cheat sheet

Task Function Example
Scatter plot geom_point() aes(x, y, color)
Bar chart geom_col() aes(x, y, fill)
Error bars geom_errorbar() aes(ymin, ymax)
Non-overlapping labels geom_text_repel() aes(label) (from ggrepel)
Horizontal line geom_hline() yintercept = 0
Vertical line geom_vline() xintercept = c(-1, 1)
Log scale scale_x_log10() Spread skewed data
Manual colors scale_color_manual() values = c("A" = "#hex")
Viridis continuous scale_fill_viridis_c() Colorblind-safe gradient
Brewer discrete scale_fill_brewer() palette = "Dark2"
Readable numbers label_comma() 10000 becomes 10,000
Math notation expression() expression(log[2]~"FC")
Reorder factor fct_reorder() Sort categorical axis by a numeric variable
Save figure ggsave() width, height, dpi, units
Set global theme theme_set() Apply once, affects all plots

Troubleshooting

ggsave produces a blank or corrupted PNG on the cluster

This is almost always a missing graphics device. Set the cairo backend at the top of your script:

1
options(bitmapType = "cairo")

If cairo is not available, try:

1
capabilities()["cairo"]

If it returns FALSE, use type = "Xlib" in ggsave() or export as PDF instead (which does not need a bitmap device).

ggrepel labels are missing or say 'too many overlaps'

Increase max.overlaps:

1
geom_text_repel(max.overlaps = 20)

Or reduce the number of labeled points by filtering more strictly:

1
top_genes <- deseq %>% filter(padj < 0.001) %>% slice_head(n = 5)
pheatmap colors look washed out or wrong

The number of colors in your palette must be large enough to represent the data range. Use at least 50–100 colors:

1
heatmap_colors <- colorRampPalette(rev(brewer.pal(9, "RdBu")))(100)

If your z-scores are extreme, the color scale may be dominated by outliers. You can set symmetric breaks:

1
2
3
max_val <- max(abs(count_scaled), na.rm = TRUE)
breaks <- seq(-max_val, max_val, length.out = 101)
pheatmap(count_scaled, color = heatmap_colors, breaks = breaks)
My fonts look different in the saved file vs. the RStudio plot pane

The RStudio plot pane uses screen rendering, while ggsave() uses the file device. To get consistent results, always judge your figures from the saved file, not the plot pane. Open the PNG in an image viewer or the PDF in a PDF reader.

FAQs

Should I use pheatmap or ComplexHeatmap?

pheatmap is simpler and covers most use cases. ComplexHeatmap (Bioconductor) is more powerful — it supports multiple annotation tracks, split heatmaps, and oncoplots. If you need to show more than one annotation (e.g., condition + batch + genotype), switch to ComplexHeatmap. For a single condition annotation like we have here, pheatmap is sufficient.

Can I use these techniques with other organisms?

Yes. Everything here applies to any differential expression or enrichment result, regardless of organism. Swap the gene IDs, GO terms, and condition labels, and the same code works for human, Arabidopsis, mouse, or any species.

How do I arrange multiple plots into one figure?

Use the patchwork package:

1
2
3
4
5
# install.packages("patchwork")
library(patchwork)

(volcano | ma_plot) / enrich_bar +
  plot_annotation(tag_levels = "A")

This creates a 2-over-1 layout with panel labels A, B, C. Most journals require multi-panel figures as a single file.

What if my journal requires TIFF format?
1
2
3
ggsave("figure1.tiff", volcano,
       width = 7, height = 6, dpi = 300,
       units = "in", compression = "lzw")

The compression = "lzw" flag reduces file size significantly. Some journals accept LZW-compressed TIFFs; others require uncompressed. Check the author guidelines.

Next session

Session 5 (March 24): Running bioinformatics programs on RCAC. We will cover how to use the module system, run containerized tools with Apptainer, submit SLURM jobs, and manage bioinformatics workflows on RCAC clusters.

Resources
