Assemble Mitochondrial Genomes from Long Reads

A short guide to assemble mitochondrial genomes from long reads (PacBio HiFi) using MitoHiFi program

1. Installation

Using the docker image, we can run MitoHiFi on any system that supports docker. Singularity can also be used to run the docker image on HPC systems. All RCAC systems support Singularity.

singularity pull docker://ghcr.io/marcelauliano/mitohifi:master

This will create mitohifi-master.sif file in the current directory.

2. Running MitoHiFi

To run MitoHiFi, we need HiFi reads. We will download sample datasets from PacBio website. For this specific tutorial, we will use the PacBio HiFi data for maize B73 genome.

wget https://downloads.pacbcloud.com/public/revio/2023Q1/maize-B73-rep1/m84006_221229_002525_s1.hifi_reads.bam

First step is to convert the HiFi reads in bam format to fasta format. We can use samtools for this.

ml biocontainers
ml samtools
samtools fasta \
    -threads ${SLURM_CPUS_ON_NODE} \
    m84006_221229_002525_s1.hifi_reads.bam > maize_B73_hifi.fasta

We will also need a reference mitochondrial genome. MitoHifi provides a script to download the reference mitochondrial genome for maize.

singularity exec mitohifi_master.sif findMitoReference.py \
    --species "Zea mays subsp. mays" \
    --email ${USER}@purdue.edu \
    --outfolder ./maize/ \
    --type mitochondrion \
    --min_length 14000

This command will download NC_007982.1.fasta and NC_007982.1.gb in the maize directory that you will use for -f and -g options in the next step.

Next, we can run MitoHiFi on the fasta file

singularity exec mitohifi_master.sif mitohifi.py \
    -r maize-hifi.fasta \
    -f maize/NC_007982.1.fasta \
    -g maize/NC_007982.1.gb \
    -t ${SLURM_CPUS_ON_NODE} \
    -a plant \
    -p 80 \
    -o 1

Tip

MitoHiFi also allows you to use contigs instead of raw reads as well!

The options to consider are: - -t : Number of threads, using ${SLURM_CPUS_ON_NODE} to get the number of CPUs on the node you requested - -a : organism group, whether animal, plant, or fungi - -p : Percentage of query in the blast match with close related mito, default is 50 - -o : Genetic-code - 1: The Standard Code - 2: The Vertebrate Mitochondrial Code - 3: The Yeast Mitochondrial Code - 4: The Mold, Protozoan, and Coelenterate Mitochondrial Code and the Mycoplasma/Spiroplasma Code - 5: The Invertebrate Mitochondrial Code - 6: The Ciliate, Dasycladacean and Hexamita Nuclear Code - 9: The Echinoderm and Flatworm Mitochondrial Code - 10: The Euplotid Nuclear Code - 11: The Bacterial, Archaeal and Plant Plastid Code - 12: The Alternative Yeast Nuclear Code - 13: The Ascidian Mitochondrial Code - 14: The Alternative Flatworm Mitochondrial Code - 16: Chlorophycean Mitochondrial Code - 21: Trematode Mitochondrial Code - 22: Scenedesmus obliquus Mitochondrial Code - 23: Thraustochytrium Mitochondrial Code - 24: Pterobranchia Mitochondrial Code - 25: Candidate Division SR1 and Gracilibacteria Code

There are other options as well, you can check the help for more details.

singularity exec mitohifi_master.sif mitohifi.py -h

You can submit this as a job script to run on HPC systems.

#!/bin/bash
#SBATCH --nodes=1
#SBATCH --ntasks=64
#SBATCH --partition=<partition-name>
#SBATCH --account=<account-name>
#SBATCH --time=4-00:00:00
#SBATCH --job-name=mitohifi_run
#SBATCH --output=anvil-%x.%j.out
#SBATCH --error=anvil-%x.%j.err
#SBATCH --mail-user=${USER}@purdue.edu
#SBATCH --mail-type=begin
#SBATCH --mail-type=end
ml purge

singularity exec mitohifi_master.sif mitohifi.py \
    -r maize-hifi.fasta \
    -f maize/NC_007982.1.fasta \
    -g maize/NC_007982.1.gb \
    -t ${SLURM_CPUS_ON_NODE} \
    -a plant \
    -p 80 \
    -o 1

Warning

Make sure to modify the script to suit your needs. <partition-name> and <account-name> should be replaced with the appropriate values.

Tip

For more details, you can check the MitoHiFi documentation

3. Output

MitoHifi will produce a series of folders with the results. The main results will be in your working folder and they are:

• final_mitogenome.fasta - the final mitochondria circularized and rotated to start at tRNA-Phe
• final_mitogenome.gb - the final mitochondria annotated in GenBank format.
• final_mitogenome.coverage.png - the sequencing coverage throughout the final mitogenome
• final_mitogenome.annotation.png - the predicted genes throughout the final mitogenome
• contigs_annotations.png - annotation plots for all potential contigs
• coverage_plot.png - reads coverage plot of filtered reads mapped to all potential contigs
• contigs_stats.tsv - containing the statistics of your assembled mitos such as the number of genes, size, whether it was circularized or not, if the sequence has frameshifts and etc...
• shared_genes.tsv - show comparison of annotation between close-related mitogenome and all potential contigs assembled

Here are the plots for the maize B73 mitochondrial genome:

Figure 1: Predicted genes throughout the final mitogenome

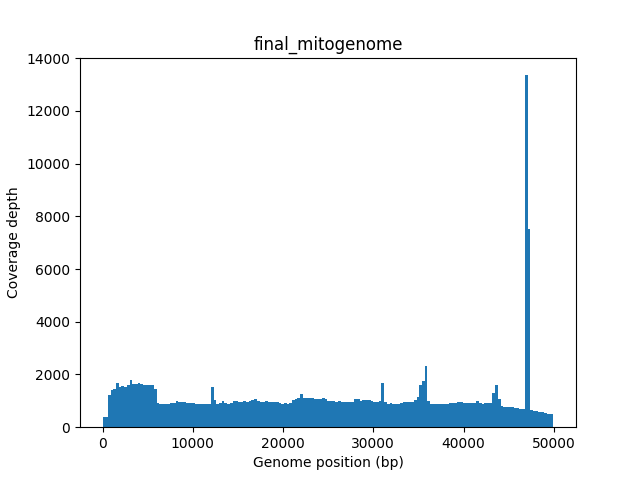

Figure 2: The sequencing coverage throughout the final mitogenome

4. References

Uliano-Silva, M., Ferreira, J.G.R.N., Krasheninnikova, K. et al. MitoHiFi: a python pipeline for mitochondrial genome assembly from PacBio high fidelity reads. BMC Bioinformatics 24, 288 (2023). DOI: 10.1186/s12859-023-05385-y
