Web Server

Nginx Deployment

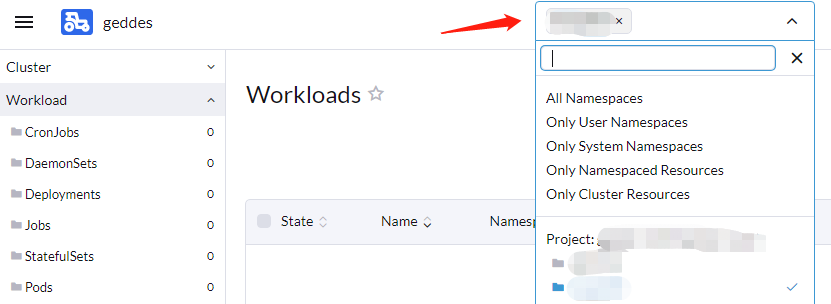

  1. Select your Project from the top right dropdown Geddes Web Server 1

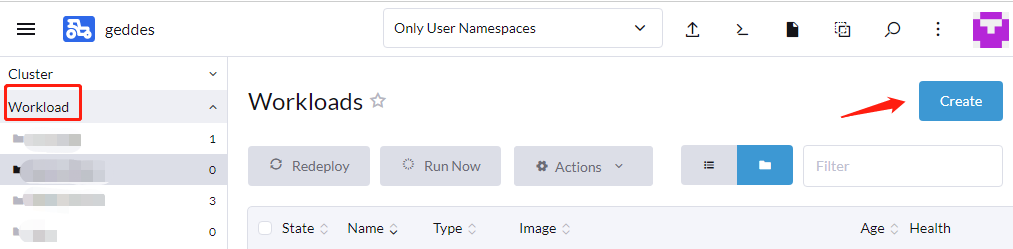

  2. Using the far left menu, select Workload
  3. Click Create at the top right Geddes Web Server 2

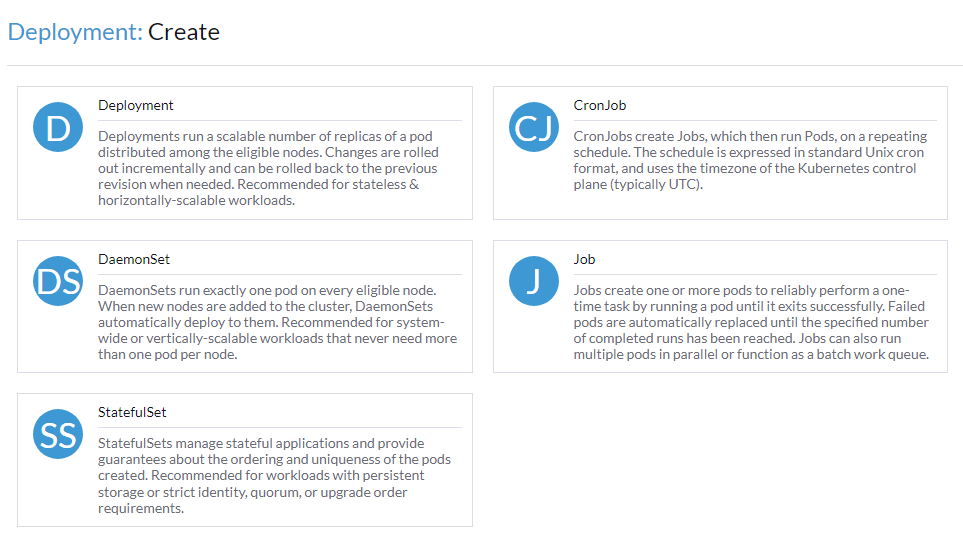

  4. Select the appropriate Deployment Type for your use case, here we will select and use Deployment Geddes Web Server 3

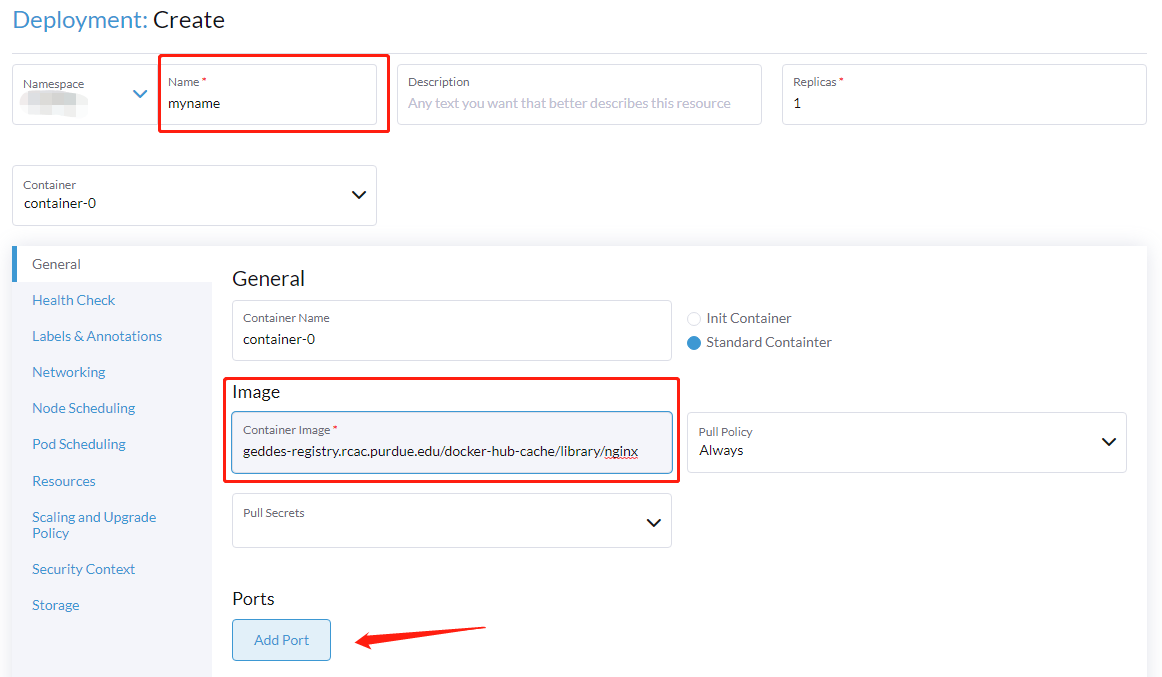

  5. Fill out the form
    • Select Namespace
    • Give an arbitrary Name
    • Set Container Image to the nginx Docker image: geddes-registry.rcac.purdue.edu/docker-hub-cache/library/nginx Geddes Web Server 4
    • Create a Cluster IP service to point our external accessible ingress to later

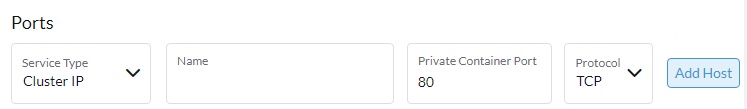

      • Click Add Port
      • Click Service Type and with the dropdown select Cluster IP
      • In the Private Container Port box type 80 Geddes Web Server 5
    • Setup Pod Label
      • Select Labels & Annotations on the left side of the current form
      • Select Add Label under the Pod Labels section
      • Give an arbitrary unique key and value you can remember later when creating Services and other resources e.g Key: my-web Value: nginx Geddes Web Server 6 Geddes Web Server 6b
    • Click Create

Wait a couple minutes while your application is deployed. The "does not have minimum availability" message is expected. But, waiting more than 5 minutes for your workload to deploy typically indicates a problem. You can check for errors by clicking your workload name (i.e. "mywebserver"), then using the vertical ellipsis on the right hand side of your deployed pod and selecting View Logs.

If all goes well, you will see an Active status for your deployment.

Expose the web server to external clients via an Ingress

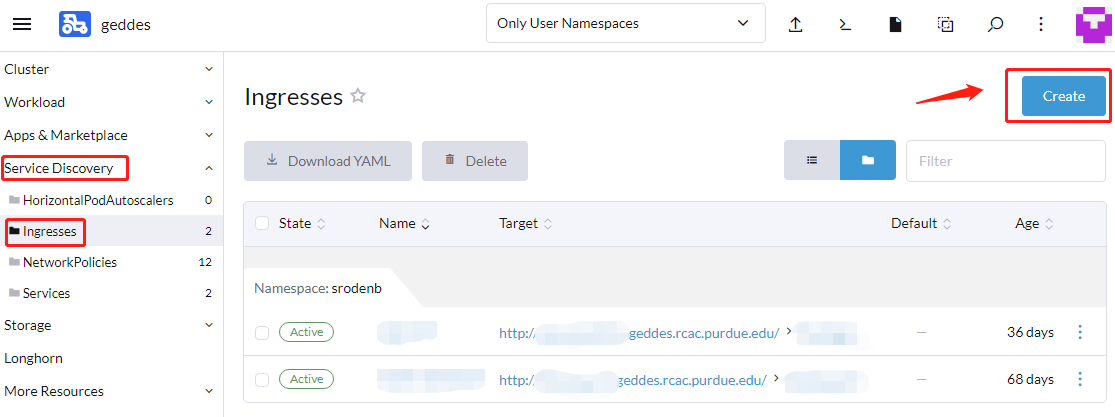

  1. Using the far left menu navigate to Service Discovery > Ingresses and select Create at the top right Geddes Web Server 7

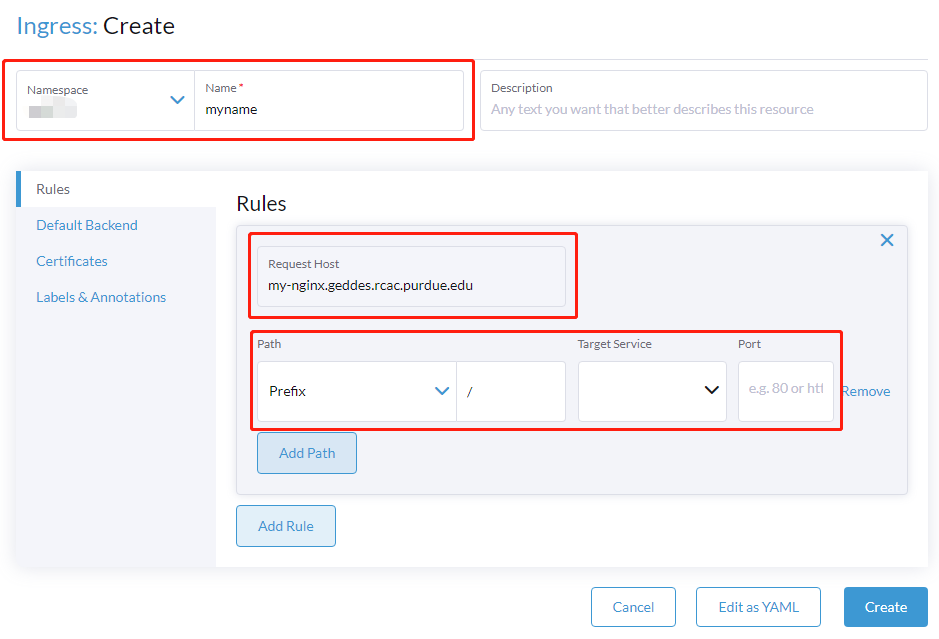

  2. Fill out the form
    • Ensure to select the namespace where you deployed the nginx
    • Give an arbitrary Name
    • Under Request Host give the url you want for your web application e.g my-nginx.geddes.rcac.purdue.edu
    • Fill in the value Path > Prefix as /
    • Use the Target Service and Port dropdowns to select the service you created during the Nginx Deployment section Geddes Web Server 8

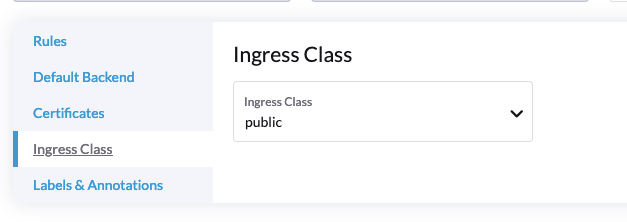

    • The default Ingress is private, which is only accessible within the Purdue network. To make a public one, change the Ingress Class to public: Geddes Web Server 9
